Power Management IC with 5 outputs, operating from a 2.5V to 6V input range. Features include a 2.25MHz switching frequency, 1A maximum output current, and adjustable output voltages from 600mV to 6V. This component is housed in a 4mm x 4.15mm x 0.88mm VQFN EP package, supplied on tape and reel, and is RoHS compliant. It offers a low operating supply current of 32uA and a maximum operating temperature of 85°C.
Frequency2.25MHz
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments TPS65053RGET technical specifications.
General
Package/Case
VQFN EP
Frequency
2.25MHz
Height
0.88mm
Lead Free
Lead Free
Length
4mm
Max Duty Cycle
100%
Max Input Voltage
6V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
6V
Min Output Voltage
600mV
Number of Outputs
5
Operating Supply Current
32uA
Operating Supply Voltage
6V
Output Current
600mA
Output Voltage
1.3V
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS65053
Thickness
880um
Weight
0.001601oz
Width
4.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS65053RGET Datasheet
Download the complete datasheet for Texas Instruments TPS65053RGET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

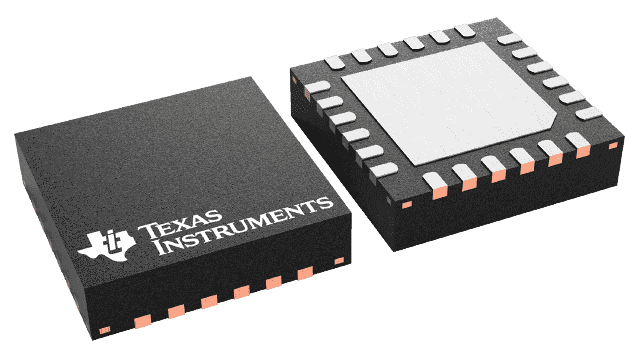

Product Images
