Power management IC featuring five outputs, capable of delivering up to 2A output current with a 3.3V output voltage. Operating supply voltage ranges from 2.8V to 6.3V, with a maximum supply current of 2.5A and a quiescent current of 80µA. This surface mount component is housed in a 6mm x 6mm x 0.9mm VQFN package, suitable for tape and reel packaging. It operates across a temperature range of -40°C to 85°C and is RoHS compliant.
PackageVQFN
Current2.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS65070RSLR technical specifications.
General
| Package/Case | VQFN |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Duty Cycle | 100% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 5 |
| Operating Supply Voltage | 6.3V |
| Output Current | 2A |
| Output Voltage | 3.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 80uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2.5A |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS65070RSLR Datasheet
Download the complete datasheet for Texas Instruments TPS65070RSLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

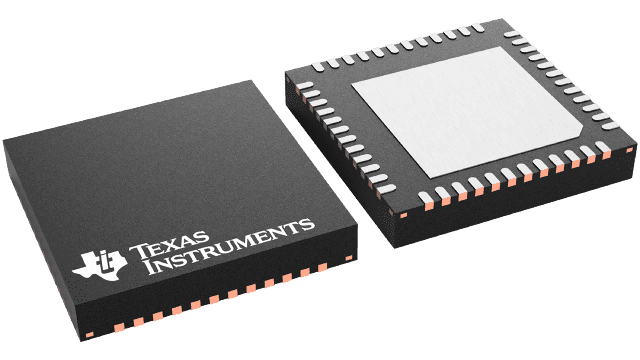

Product Images
