Texas Instruments
TPS65132AYFFR
Split-Rail, Single Inductor Dual Output Converter with Positive and Negative Outputs 15-DSBGA -40 to 85
Current700uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS65132AYFFR technical specifications.
General
| Display Type | LCD |
| Height | 625um |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 80A |
| Max Supply Current | 700uA |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Current | 540uA |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 540uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 700uA |
| Thickness | 400um |
| Topology | Boost |
| Width | 0m |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS65132AYFFR Datasheet
Download the complete datasheet for Texas Instruments TPS65132AYFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

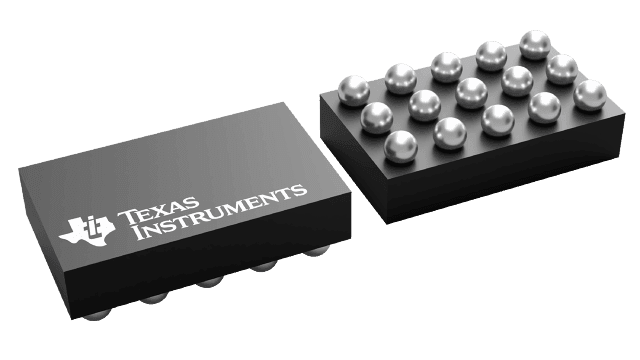

Product Images
