Texas Instruments

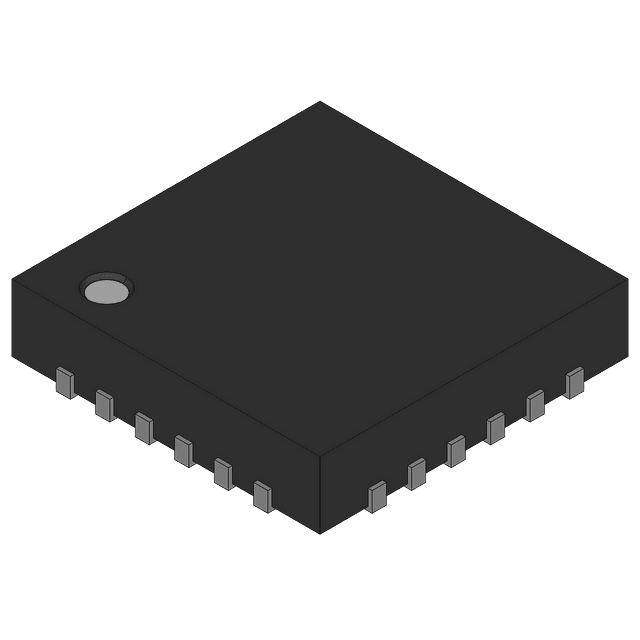

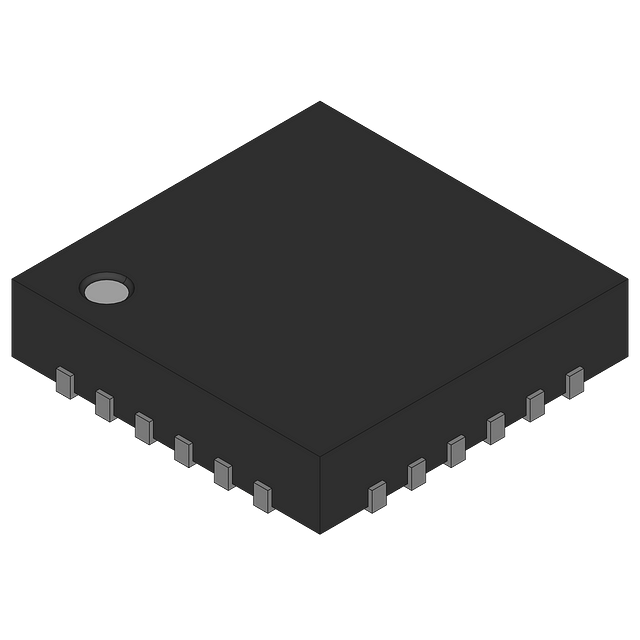

TPS65141RGER
4-CH LCD Bias w/ Fully Int. Pos. Charge Pump, 3.3V LDO Controller & 1.6A Min. Boost Ilim 24-VQFN -40 to 85
Frequency2.1MHz
PackageVQFN
Power3.3W
Quick Jump:
Technical Specifications
Texas Instruments TPS65141RGER technical specifications.
General
Package/Case
VQFN
Frequency
2.1MHz
Lead Free
Lead Free
Max Frequency
2.1MHz
Max Input Voltage
5.8V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Power Dissipation
3.3W
Max Supply Voltage
5.8V
Min Supply Voltage
2.7V
Number of Outputs
3
Operating Supply Current
700uA
Output Voltage
5V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
3.3W
Quiescent Current
700uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
TPS65141
Weight
0.001601oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS65141RGER Datasheet
Download the complete datasheet for Texas Instruments TPS65141RGER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
