Texas Instruments
TPS65193RGER
5-Channel Level Shifter for LCD Displays (Dual Channel Scan Driver) 24-VQFN -40 to 85
5-Channel Level Shifter for LCD Displays (Dual Channel Scan Driver) 24-VQFN -40 to 85
Frequency150MHz
PackageVQFN EP
Power11.3W
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments TPS65193RGER datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments TPS65193RGER technical specifications.
General
| Package/Case | VQFN EP |
| Frequency | 150MHz |
| Lead Free | Lead Free |
| Max Frequency | 150MHz |
| Max Input Voltage | 35V |
| Min Input Voltage | 15V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 11.3W |
| Max Supply Voltage | 35V |
| Min Supply Voltage | 3V |
| Number of Channels | 5 |
| Number of Circuits | 2 |
| Operating Supply Current | 600uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 11.3W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 55V/µs |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS65193RGER Datasheet
Download the complete datasheet for Texas Instruments TPS65193RGER to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

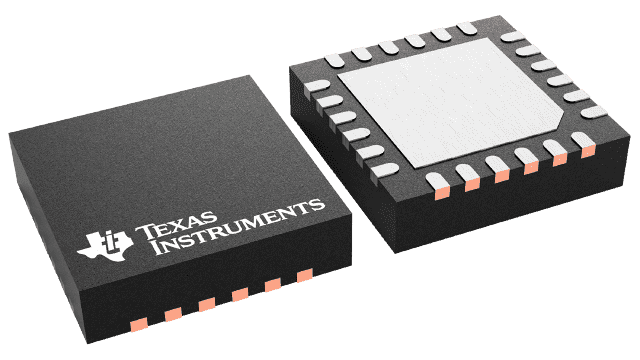

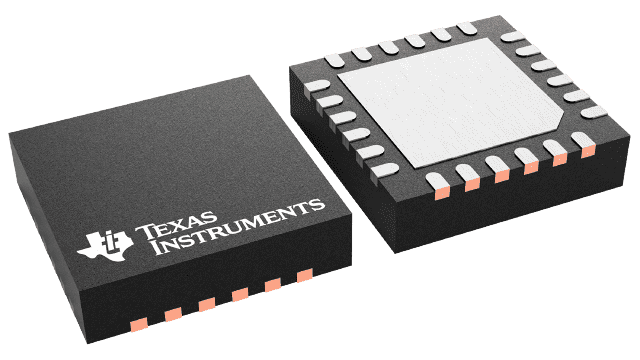

Product Images
