Triple synchronous buck converter, 4.5V to 18V input, delivering 3A, 2A, and 2A outputs. Features adjustable and fixed output voltage up to 17V, with a maximum output current of 2A per channel. Operates from -40°C to 125°C in a 6mm x 6.15mm x 0.9mm VQFN surface mount package. RoHS compliant and lead-free.
PackageVQFN
Current1.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS65250RHAT technical specifications.
General
| Package/Case | VQFN |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Input Voltage | 18V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 3.3V |
| Mount | Surface Mount |
| Number of Outputs | 3 |
| Operating Supply Voltage | 18V |
| Output Current | 2A |
| Output Type | Adjustable, Fixed |
| Output Voltage | 17V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 20mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1.5mA |
| Synchronous Rectifier | No |
| Width | 6.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS65250RHAT Datasheet
Download the complete datasheet for Texas Instruments TPS65250RHAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

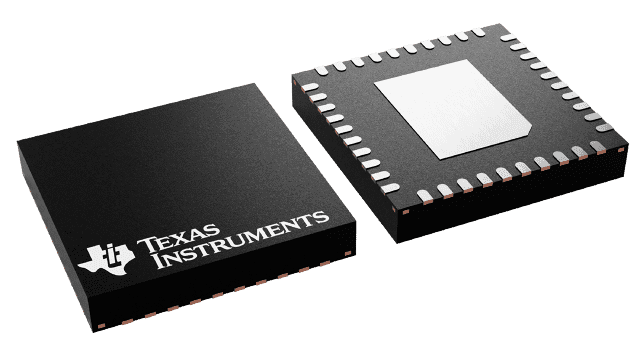

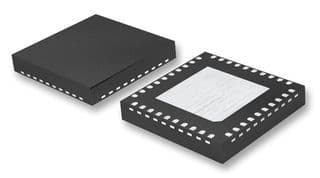

Product Images
