Dual-channel, positive, adjustable linear voltage regulator with 500mA maximum output current per channel. Features a 170mV dropout voltage at 250mA and 2% accuracy. Operates from a 2.7V to 6V input voltage range with a 1.224V reference voltage. Includes power good and enable functions, with a 190uA quiescent current. Packaged in a 20-pin HTSSOP, this RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageHTSSOP
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS70102PWPRG4 technical specifications.
General
| Accuracy | 2% |
| Package/Case | HTSSOP |
| Dropout Voltage | 170mV |
| Input Bias Current | 190uA |
| Lead Free | Lead Free |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 1.2V |
| Max Power Dissipation | 4.115W |
| Nominal Output Voltage | 5.5V |
| Number of Outputs | 2 |
| Number of Regulators | 2 |
| Output Current | 250mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 190uA |
| Reach SVHC Compliant | Unknown |
| Reference Voltage | 1.224V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS70102PWPRG4 Datasheet
Download the complete datasheet for Texas Instruments TPS70102PWPRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

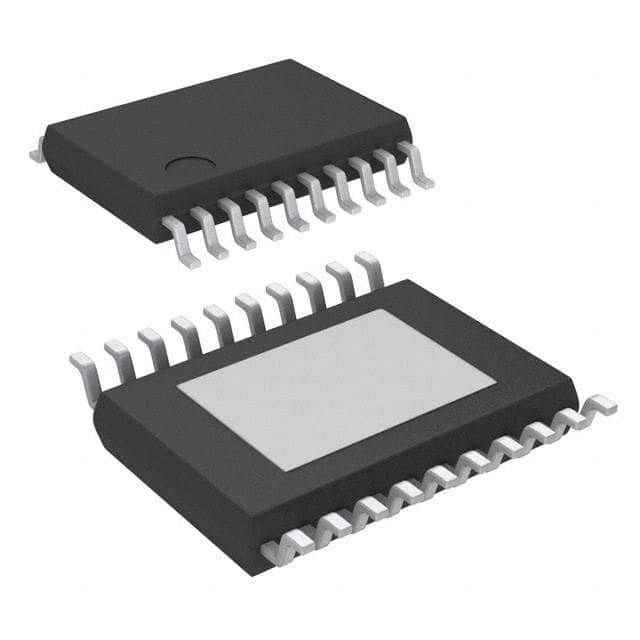

Product Images
