Dual-output low-dropout voltage regulator ICs offer 1A output current per channel with a 160mV dropout voltage. Featuring a 2% accuracy and fixed 3.3V and 1.2V outputs, these devices operate from a 2.7V to 6V input. The regulators provide 1A maximum output current per channel, with a total output current of 2A. Packaged in a 24-HTSSOP, these components are designed for operation across a wide temperature range of -55°C to 125°C.
PackageHTSSOP
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS70345MPWPREP technical specifications.
General
Accuracy
2%
Package/Case
HTSSOP
Current - Output 1
1A
Current - Output 2
1A
Dropout Voltage
160mV
Input Bias Current
185uA
Lead Free
Contains Lead
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
1A
Max Output Voltage
1.2V
Min Output Voltage
1.2V
Number of Outputs
2
Number of Regulators
2
Output Current
2A
Output Type
Fixed
Output Voltage
1.2V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
180uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.24V
RoHS Compliant
Yes
Voltage - Output 1
3.3V
Voltage - Output 2
1.2V
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS70345MPWPREP Datasheet
Download the complete datasheet for Texas Instruments TPS70345MPWPREP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

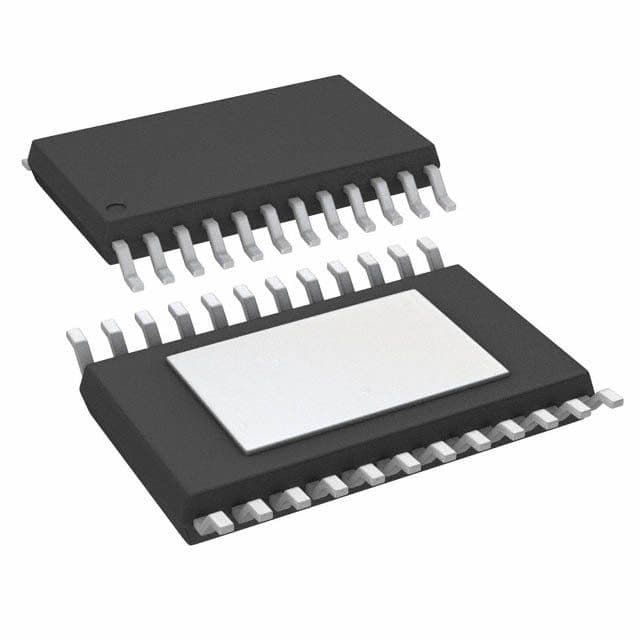

Product Images
