Ultra-low-IQ, positive, fixed output linear voltage regulator with 3.3V nominal output voltage and 150mA maximum output current. Features a 30V maximum input voltage, 2.7V minimum input voltage, and 960mV dropout voltage. Offers 2% accuracy, 80dB PSRR, and 1µA quiescent current. Includes reverse current protection and an enable function. Packaged in a 5-SOT-23 surface mount case, operating from -40°C to 125°C.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS70933DBVR technical specifications.
General
Accuracy
2%
Package/Case
SOT-23-5
Dropout Voltage
960mV
Height
1.45mm
Lead Free
Lead Free
Length
2.9mm
Min Current Limit
200mA
Max Input Voltage
30V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Supply Voltage
30V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
80dB
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
1.2mm
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS70933DBVR Datasheet
Download the complete datasheet for Texas Instruments TPS70933DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

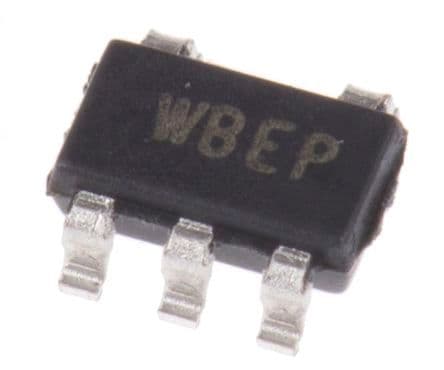

Product Images
