150mA, 3.3V fixed output linear voltage regulator (LDO) with ultra-low 1µA quiescent current. Features 30V maximum input voltage, 2.7V minimum input voltage, and 960mV dropout voltage. Offers 1% output voltage accuracy and 80dB power supply rejection ratio (PSRR). Includes reverse current protection and an enable pin. Packaged in a 5-SOT-23 surface mount case, operating from -40°C to 125°C. RoHS compliant.
PackageSOT-23
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS70933DBVT technical specifications.
General
Accuracy
2%
Package/Case
SOT-23
Dropout Voltage
960mV
Height
1.3mm
Lead Free
Lead Free
Length
3.05mm
Min Current Limit
200mA
Max Input Voltage
30V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
1%
Package Quantity
250
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
80dB
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS70933DBVT Datasheet
Download the complete datasheet for Texas Instruments TPS70933DBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

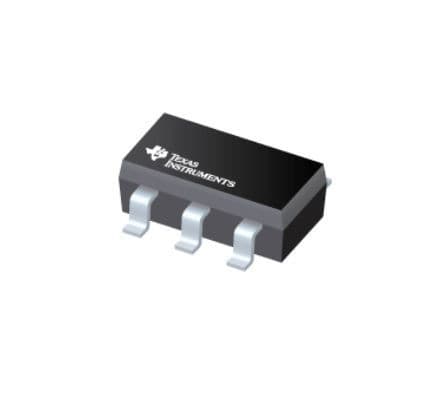

Product Images
