Ultra-low-IQ, positive linear voltage regulator offering a fixed 3.3V output with 150mA maximum output current. Features a 30V maximum input voltage, 2.7V minimum input voltage, and a 960mV dropout voltage. Includes reverse current protection and an enable pin. Packaged in a 6-WSON surface mount configuration with dimensions of 2mm x 2mm x 800µm. Operates across a temperature range of -40°C to 125°C and is RoHS compliant.
PackageSON
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS70933DRVR technical specifications.
General
Accuracy
2%
Package/Case
SON
Dropout Voltage
960mV
Height
800um
Lead Free
Lead Free
Length
2mm
Min Current Limit
200mA
Max Input Voltage
30V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Supply Voltage
30V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Radiation Hardening
No
RoHS Compliant
Yes
Thickness
750um
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS70933DRVR Datasheet
Download the complete datasheet for Texas Instruments TPS70933DRVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

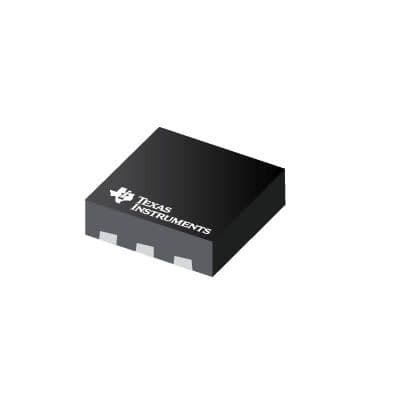

Product Images
