Dual-channel low-dropout voltage regulator (LDO) offering 250mA output current per channel. Features a fixed 1.8V output voltage with 1.5% accuracy. Operates from a 2.7V to 5.5V input range, providing stable regulation with a 190µA input bias current and 300µA quiescent current. Housed in a VSON package, this RoHS compliant component supports a wide operating temperature range of -40°C to 125°C.
PackageVSON
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS71219DRCR technical specifications.
General
| Accuracy | 1.5% |
| Package/Case | VSON |
| Input Bias Current | 190uA |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Voltage | 1.8V |
| Min Output Voltage | 1.8V |
| Max Power Dissipation | 1.92W |
| Max Supply Current | 600uA |
| Number of Outputs | 2 |
| Number of Regulators | 2 |
| Output Configuration | Positive |
| Output Current | 250mA |
| Output Type | Fixed, Adjustable |
| Output Voltage | 1.8V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 54dB |
| Quiescent Current | 300uA |
| Reference Voltage | 1.225V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS71219DRCR Datasheet
Download the complete datasheet for Texas Instruments TPS71219DRCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

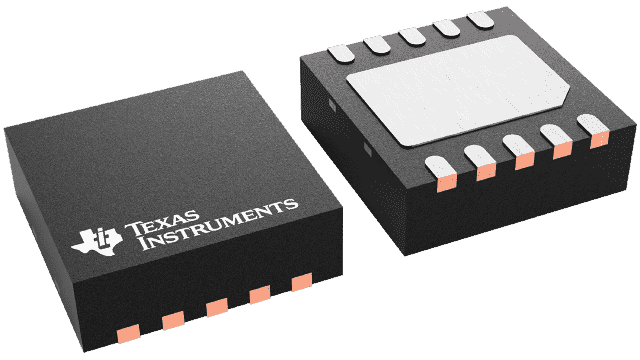

Product Images
