Dual-channel, positive, fixed output linear voltage regulator with an enable function. Features a 2.85V output voltage, 250mA maximum output current per channel, and a low dropout voltage of 125mV. Operates from a 2.7V to 5.5V input voltage range with 1.5% accuracy. Housed in a VSON package, this RoHS compliant component offers a maximum power dissipation of 1.92W and operates across a temperature range of -40°C to 125°C.
PackageVSON
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS71247DRCR technical specifications.
General
Accuracy
1.5%
Package/Case
VSON
Dropout Voltage
125mV
Input Bias Current
190uA
Lead Free
Lead Free
Min Current Limit
400mA
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Voltage
1.8V
Min Output Voltage
1.8V
Max Power Dissipation
1.92W
Number of Outputs
2
Number of Regulators
2
Output Current
250mA
Output Type
Fixed
Output Voltage
2.85V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
300uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS71247DRCR Datasheet
Download the complete datasheet for Texas Instruments TPS71247DRCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

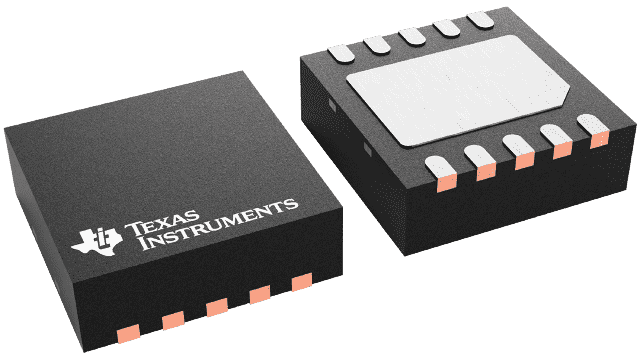

Product Images
