Dual-channel, 2.8V fixed output, positive linear voltage regulator with 250mA output current capability. Features a 1.5% accuracy, 5.5V maximum input voltage, and operates from 2.7V to 5.5V. Offers a low input bias current of 190µA and quiescent current of 300µA. Packaged in a VSON case, this RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageVSON
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS71256DRCT technical specifications.
General
Accuracy
1.5%
Package/Case
VSON
Input Bias Current
190uA
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Voltage
2.8V
Min Output Voltage
2.8V
Max Power Dissipation
1.92W
Max Supply Current
600uA
Number of Outputs
2
Number of Regulators
2
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
2.8V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
54dB
Quiescent Current
300uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS71256DRCT Datasheet
Download the complete datasheet for Texas Instruments TPS71256DRCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

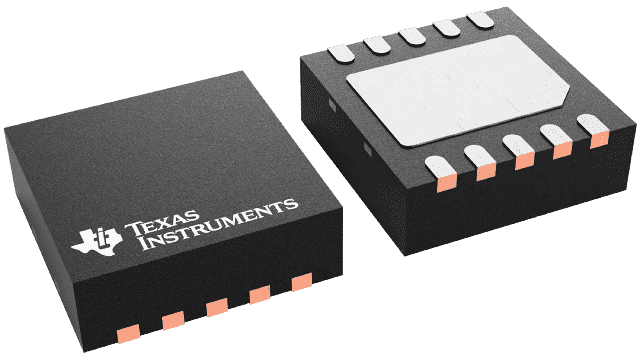

Product Images
