Ultra-low-IQ, positive, adjustable linear voltage regulator with 50mA output current. Features a 24V maximum input voltage and a 3.2µA input bias current. Offers a 415mV dropout voltage and 4% output voltage accuracy. Operates across a -40°C to 125°C temperature range. Packaged in a 5-pin SC, suitable for surface-mount applications.
PackageSC
PolarityPositive
Power320mW
Quick Jump:
Technical Specifications
Texas Instruments TPS71501DCKR technical specifications.
General
| Accuracy | 4% |
| Package/Case | SC |
| Dropout Voltage | 415mV |
| Height | 0.9mm |
| Input Bias Current | 3.2uA |
| Lead Free | Lead Free |
| Length | 2mm |
| Min Current Limit | 125mA |
| Max Input Voltage | 24V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Output Voltage | 15V |
| Min Output Voltage | 1.2V |
| Max Power Dissipation | 320mW |
| Min Supply Voltage | 2.5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 50mA |
| Output Type | Adjustable |
| Output Voltage | 15V |
| Output Voltage Accuracy | 4% |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 320mW |
| Quiescent Current | 3uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 900um |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS71501DCKR Datasheet
Download the complete datasheet for Texas Instruments TPS71501DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

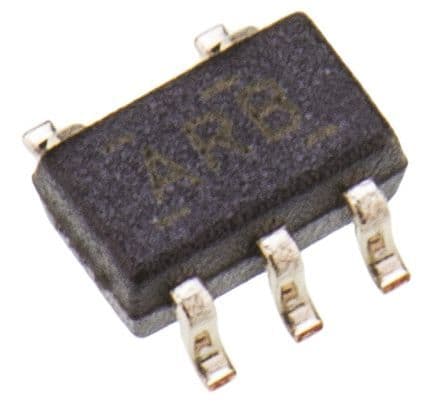

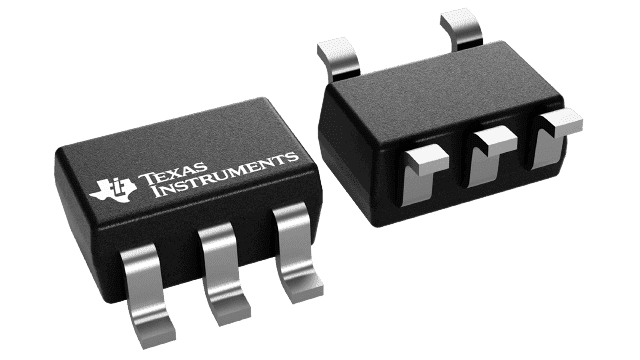

Product Images
