Ultra-low-IQ, low-dropout voltage regulator offering a fixed 3.3V output with 50mA maximum output current. Features a wide 3V to 24V input voltage range and 4% output voltage accuracy. Operates from -40°C to 125°C with a quiescent current of 3µA and input bias current of 3.2µA. Packaged in a compact 5-SC70 (SOT-5) surface-mount case, measuring 2mm x 1.25mm x 0.9mm. This RoHS compliant component provides 60dB power supply rejection ratio and 320mW power dissipation.
PackageSOT-5
PolarityPositive
Power320mW
Quick Jump:
Technical Specifications
Texas Instruments TPS71533DCKRG4 technical specifications.
General
Accuracy
4%
Package/Case
SOT-5
Height
0.9mm
Input Bias Current
3.2uA
Lead Free
Lead Free
Length
2mm
Max Input Voltage
24V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Power Dissipation
320mW
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
50mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
4%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
320mW
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
3uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS71533DCKRG4 Datasheet
Download the complete datasheet for Texas Instruments TPS71533DCKRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

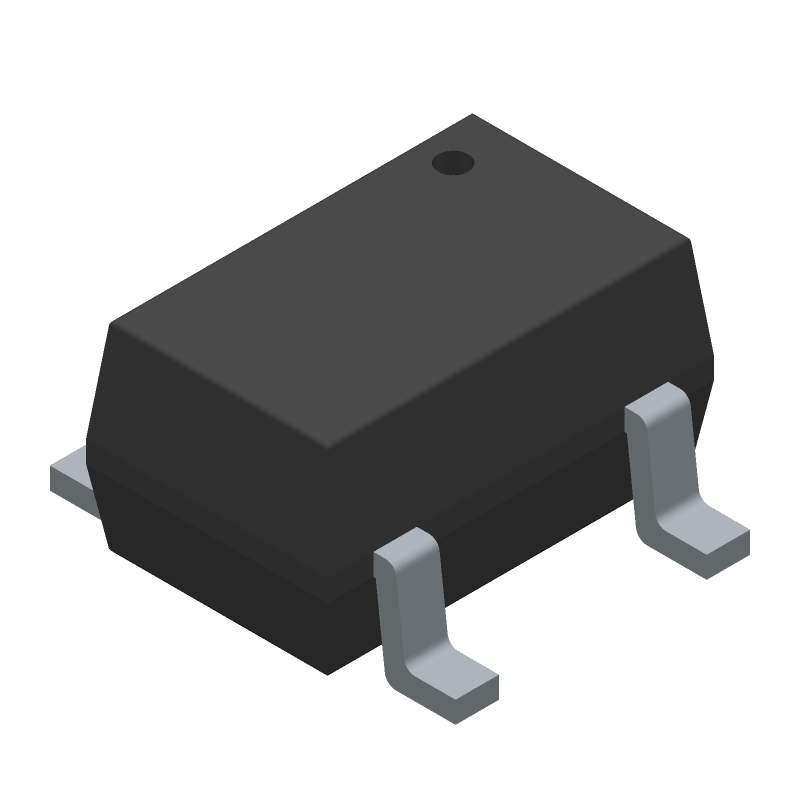

Product Images
