Positive, adjustable output linear voltage regulator with a maximum output current of 80mA and a maximum output voltage of 15V. Features a low dropout voltage of 670mV and an ultra-low quiescent current of 3µA. Operates with an input voltage range from 2.5V to 24V, offering a maximum power dissipation of 2.5W. Accuracy is rated at 4%, with a minimum current limit of 160mA. Packaged in an 8-SON for operation between -40°C and 125°C.
PackageSON
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS715A01DRBTG4 technical specifications.
General
Accuracy
4%
Package/Case
SON
Dropout Voltage
670mV
Input Bias Current
3.2uA
Lead Free
Lead Free
Min Current Limit
160mA
Max Input Voltage
24V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
80mA
Max Output Voltage
15V
Min Output Voltage
1.2V
Max Power Dissipation
2.5W
Number of Outputs
1
Number of Regulators
1
Output Current
80mA
Output Type
Adjustable
Output Voltage
15V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
3uA
Reach SVHC Compliant
No
Reference Voltage
1.205V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS715A01DRBTG4 Datasheet
Download the complete datasheet for Texas Instruments TPS715A01DRBTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

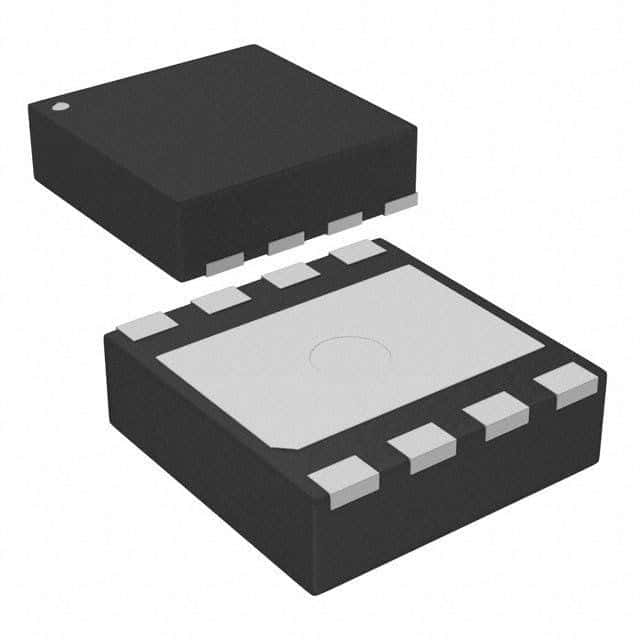

Product Images
