Positive, fixed 3.3V output linear voltage regulator with a maximum output current of 80mA. Features a low quiescent current of 3µA and a dropout voltage of 670mV. Operates from a 2.5V to 24V input voltage range and offers an accuracy of 4%. Packaged in an 8-SON for surface-mount applications, with a maximum power dissipation of 2.5W and an operating temperature range of -40°C to 125°C.
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS715A33DRBRG4 technical specifications.
General
| Accuracy | 4% |
| Dropout Voltage | 670mV |
| Input Bias Current | 3.2uA |
| Lead Free | Lead Free |
| Min Current Limit | 160mA |
| Max Input Voltage | 24V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 80mA |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 3.3V |
| Max Power Dissipation | 2.5W |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 80mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 3uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS715A33DRBRG4 Datasheet
Download the complete datasheet for Texas Instruments TPS715A33DRBRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

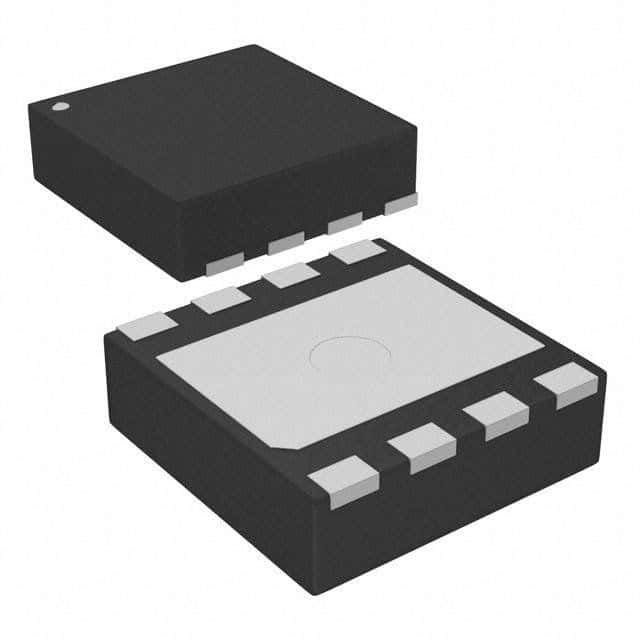

Product Images
