Automotive 150-mA linear voltage regulator, featuring a 900mV fixed output voltage and 170mV dropout voltage. This surface mount device offers a 2.5% accuracy and a low quiescent current of 80uA, with a maximum supply current of 100uA. Operating from a 2.5V to 6.5V input, it provides 150mA maximum output current and a 45dB power supply rejection ratio. Designed for automotive applications, it operates within a -40°C to 125°C temperature range and is RoHS compliant.
PackageWFDFN
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS71709QDSERQ1 technical specifications.
General
| Accuracy | 2.5% |
| Package/Case | WFDFN |
| Dropout Voltage | 170mV |
| Lead Free | Lead Free |
| Min Current Limit | 200mA |
| Max Input Voltage | 6.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Min Output Voltage | 900mV |
| Max Supply Current | 100uA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 900mV |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 45dB |
| Quiescent Current | 80uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS71709QDSERQ1 Datasheet
Download the complete datasheet for Texas Instruments TPS71709QDSERQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

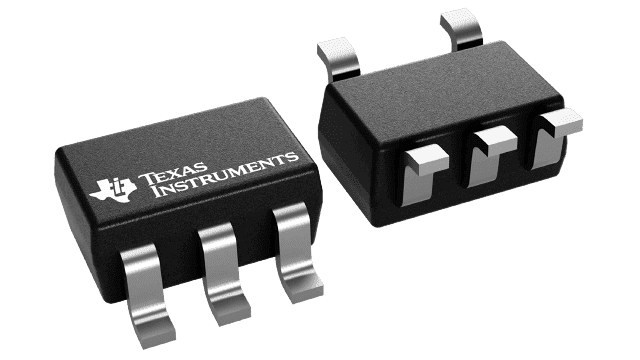

Product Images
