Texas Instruments
TPS71721DCKR
150-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable 5-SC70 -40 to 125
PackageSC
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS71721DCKR technical specifications.
General
Accuracy
3%
Package/Case
SC
Lead Free
Lead Free
Min Current Limit
200mA
Max Input Voltage
6.5V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Output Voltage
2.1V
Min Output Voltage
2.1V
Max Power Dissipation
320mW
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Fixed
Output Voltage
2.1V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
50uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS71721DCKR Datasheet
Download the complete datasheet for Texas Instruments TPS71721DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

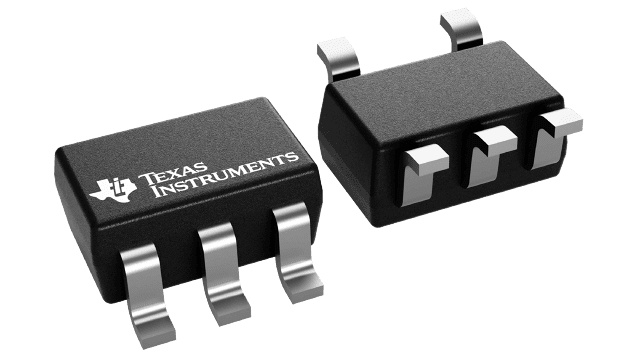

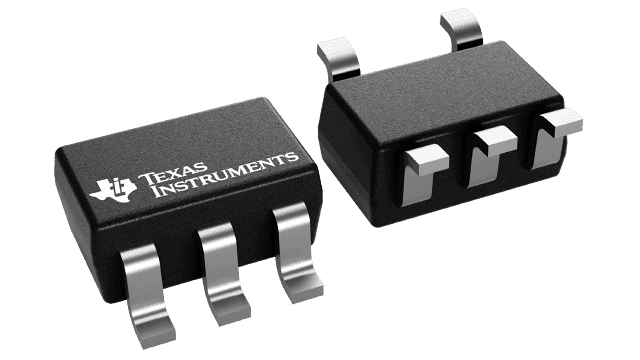

Product Images
