Positive linear voltage regulator, offering a 5V fixed output voltage with 3% accuracy. Features a low 170mV dropout voltage and 150mA output current. Operates from a 2.5V to 6.5V input voltage range with a quiescent current of 50µA. Packaged in a compact 6-WSON (1.55mm x 1.55mm x 0.75mm) for surface-mount termination. RoHS compliant and suitable for operation between -40°C and 125°C.
PackageSON
Current45uA
PolarityPositive
Power485mW
Quick Jump:
Technical Specifications
Texas Instruments TPS71750DSET technical specifications.
General
Accuracy
3%
Package/Case
SON
Dropout Voltage
170mV
Height
0.75mm
Lead Free
Lead Free
Length
1.55mm
Min Current Limit
200mA
Max Input Voltage
6.5V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Output Voltage
5V
Min Output Voltage
5V
Max Power Dissipation
269mW
Max Supply Voltage
6.5V
Min Supply Voltage
2.5V
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Adjustable, Fixed
Output Voltage
5V
Output Voltage Accuracy
3%
Package Quantity
250
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
485mW
Quiescent Current
50uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
810mV
RoHS Compliant
Yes
Supply Current
45uA
Termination
SMD/SMT
Width
1.55mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS71750DSET Datasheet
Download the complete datasheet for Texas Instruments TPS71750DSET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

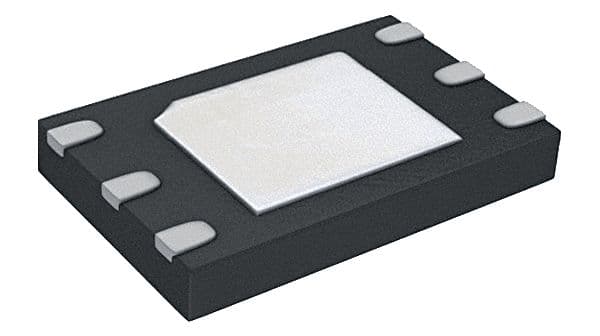

Product Images
