350mA, 1.2V fixed output positive linear voltage regulator with 1.1V minimum input voltage and 4.5V maximum input voltage. Features 50dB Power Supply Rejection Ratio (PSRR), 30µA quiescent current, and 38µA input bias current. Offers 2% accuracy and a maximum output current of 300mA. Operates from -40°C to 125°C and is RoHS compliant. Packaged in tape and reel.
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS72012YZUT technical specifications.
General
Accuracy
2%
Input Bias Current
38uA
Lead Free
Lead Free
Max Input Voltage
4.5V
Min Input Voltage
1.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Voltage
1.2V
Min Output Voltage
1.2V
Max Power Dissipation
403mW
Max Supply Current
80uA
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
350mA
Output Type
Fixed
Output Voltage
1.2V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
50dB
Quiescent Current
30uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS72012YZUT Datasheet
Download the complete datasheet for Texas Instruments TPS72012YZUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

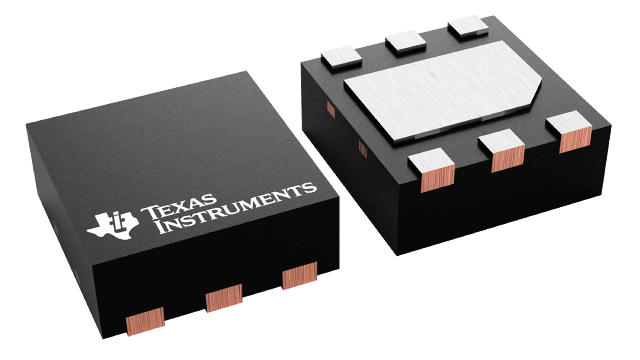

Product Images
