Negative adjustable low-dropout voltage regulator, offering a fixed -2.5V output with 1% accuracy. Features a 200mA maximum output current and a low dropout voltage of 280mV. Operates within a -10V to -2.7V input voltage range and a -40°C to 125°C temperature range. Housed in a 5-SOT-23 SMD/SMT package, this lead-free component boasts 560mW power dissipation and 130uA quiescent current.
PackageSOT-23
PolarityNegative
Power560mW
Quick Jump:
Technical Specifications
Texas Instruments TPS72325DBVT technical specifications.
General
Accuracy
2%
Package/Case
SOT-23
Dropout Voltage
280mV
Input Bias Current
130uA
Lead Free
Lead Free
Min Current Limit
300mA
Max Input Voltage
-2.7V
Min Input Voltage
-10V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Voltage
-2.5V
Min Output Voltage
-2.5V
Max Power Dissipation
560mW
Nominal Output Voltage
-2.5V
Number of Outputs
1
Number of Regulators
1
Output Current
200mA
Output Type
Fixed
Output Voltage
-2.5V
Output Voltage Accuracy
1%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Negative
Power Dissipation
560mW
Quiescent Current
130uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS72325DBVT Datasheet
Download the complete datasheet for Texas Instruments TPS72325DBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

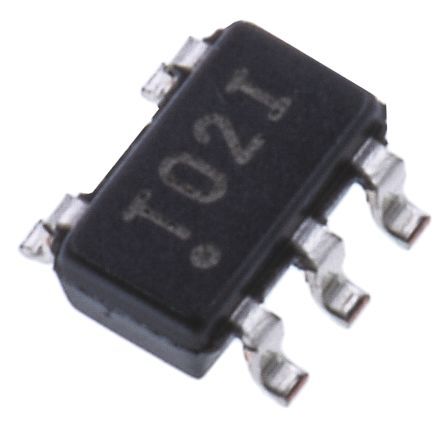

Product Images
