Positive fixed output 4.85V linear voltage regulator with 250mA maximum output current. Features a low dropout voltage of 216mV and 2% accuracy. Operates from a 5.24V to 10V input voltage range with a quiescent current of 180uA. Housed in an 8-pin PDIP package, this RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageP
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS7248QP technical specifications.
General
Accuracy
2%
Package/Case
P
Dropout Voltage
216mV
Input Bias Current
180uA
Lead Free
Lead Free
Max Input Voltage
10V
Min Input Voltage
5.24V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
4.85V
Min Output Voltage
4.85V
Max Power Dissipation
1.175W
Number of Outputs
1
Number of Regulators
1
Output Current
250mA
Output Type
Fixed
Output Voltage
4.85V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
180uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS7248QP Datasheet
Download the complete datasheet for Texas Instruments TPS7248QP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

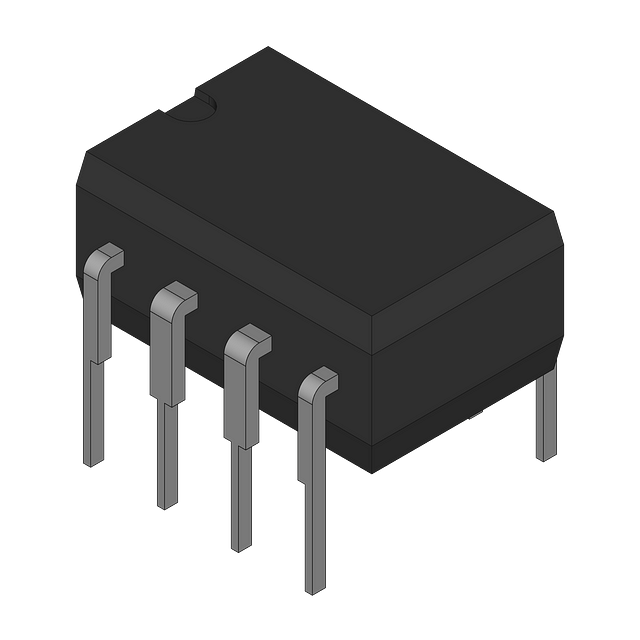

Product Images
