Adjustable positive linear voltage regulator IC with 1A maximum output current. Features a 170mV dropout voltage and 2% accuracy. Operates with an input voltage range of 1.8V to 6V, delivering an adjustable output voltage from 1.22V to 5.5V. Housed in a SOT-223-6 package, this RoHS compliant component offers a quiescent current of 70uA and a minimum current limit of 1.1A.
PackageSOT-223-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS72501DCQG4 technical specifications.
General
| Accuracy | 2% |
| Package/Case | SOT-223-6 |
| Dropout Voltage | 170mV |
| Input Bias Current | 75uA |
| Lead Free | Lead Free |
| Min Current Limit | 1.1A |
| Max Input Voltage | 6V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 1.22V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Package Quantity | 78 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 70uA |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.263V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS72501DCQG4 Datasheet
Download the complete datasheet for Texas Instruments TPS72501DCQG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

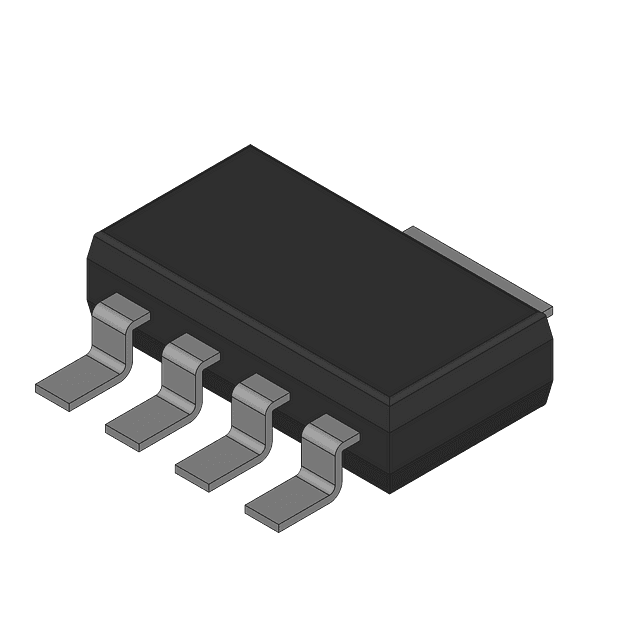

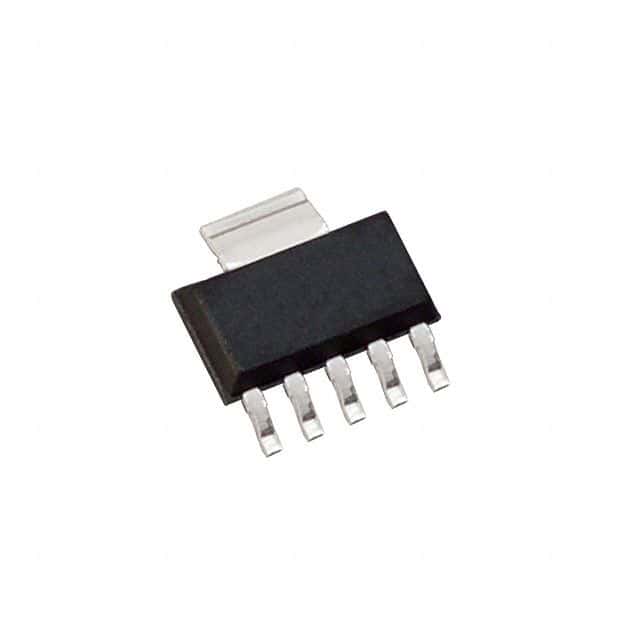

Product Images
