1-A, ultra-low-dropout linear voltage regulator with 210mV dropout voltage at 1A. Features a fixed 1.8V output voltage with 2% accuracy and a maximum input voltage of 6V. Operates from -40°C to 125°C and includes an enable function and RESET output. Packaged in a TO-263 case, this positive polarity regulator offers a 1.1A current limit and 70uA quiescent current.
PackageTO-263
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS72518KTTR technical specifications.
General
Accuracy
2%
Package/Case
TO-263
Dropout Voltage
210mV
Height
4.58mm
Input Bias Current
75uA
Lead Free
Lead Free
Length
10.16mm
Min Current Limit
1.1A
Max Input Voltage
6V
Min Input Voltage
1.8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
1.8V
Min Output Voltage
1.8V
Nominal Output Voltage
1.8V
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
1.8V
Output Voltage Accuracy
2%
Package Quantity
500
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
70uA
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reference Voltage
1.263V
RoHS Compliant
Yes
Width
8.42mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS72518KTTR Datasheet
Download the complete datasheet for Texas Instruments TPS72518KTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

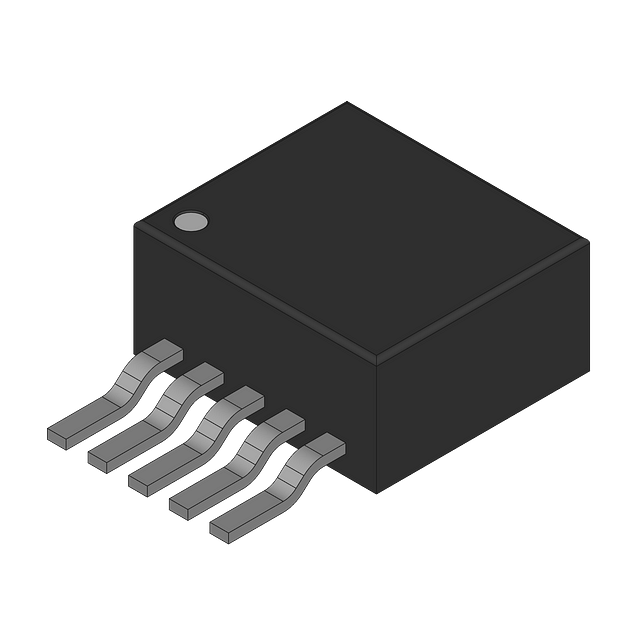

Product Images
