1-A positive fixed output linear voltage regulator with 2.5V output voltage and 2% accuracy. Features ultra-low dropout voltage of 170mV at 1A output current. Operates with a maximum input voltage of 6V and a minimum input voltage of 1.8V. Includes power good and enable functions. Packaged in a TO-263-6 case, suitable for operation from -40°C to 125°C.
PackageTO-263-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS72625KTTT technical specifications.
General
Accuracy
2%
Package/Case
TO-263-6
Dropout Voltage
170mV
Input Bias Current
75uA
Lead Free
Lead Free
Min Current Limit
1.1A
Max Input Voltage
6V
Min Input Voltage
1.8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
2.5V
Output Voltage Accuracy
2%
Package Quantity
50
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
70uA
Radiation Hardening
No
Reference Voltage
1.22V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS72625KTTT Datasheet
Download the complete datasheet for Texas Instruments TPS72625KTTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

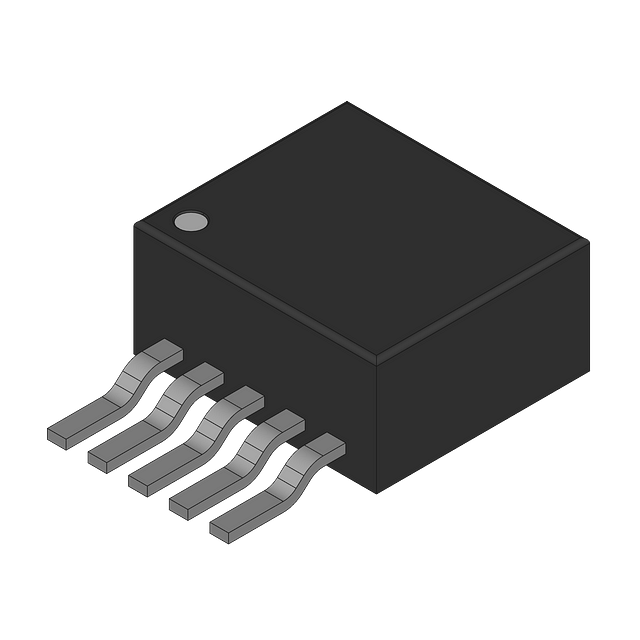

Product Images
