Texas Instruments
TPS72728YFFR
2.8V Fixed Output LDO Regulator, 250mA, 370mW, 1-Channel, Surface Mount
The TPS72728YFFR is a single-channel linear voltage regulator with a fixed output voltage of 2.8V. It can supply a maximum output current of 250mA and has a maximum power dissipation of 370mW. The device operates within a temperature range of -40°C to 125°C and is RoHS compliant. It is available in a WLCSP-4 package and is suitable for surface mount applications.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS72728YFFR technical specifications.
General
| Accuracy | 1% |
| Dropout Voltage | 163mV |
| Lead Free | Lead Free |
| Min Current Limit | 300mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Power Dissipation | 370mW |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 2.8V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 9uA |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS72728YFFR Datasheet
Download the complete datasheet for Texas Instruments TPS72728YFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

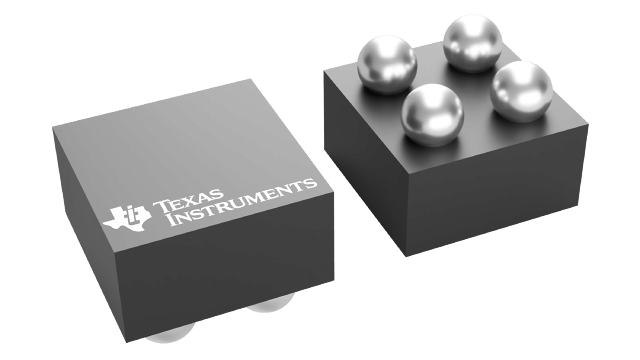

Product Images
