3.3V fixed output, positive polarity, low-dropout linear voltage regulator with 250mA maximum output current. Features ultra-low 8µA quiescent current and 130µA maximum supply current. Offers 1% output voltage accuracy and a 163mV dropout voltage at 250mA. Operates from a 2V to 5.5V input voltage range, with a maximum power dissipation of 485mW. Packaged in a compact 1.5mm x 1.5mm x 800µm WFDFN for efficient space utilization.
PackageWFDFN
PolarityPositive
Power485mW
Quick Jump:
Technical Specifications
Texas Instruments TPS72733DSER technical specifications.
General
Accuracy
2%
Package/Case
WFDFN
Dropout Voltage
163mV
Height
800um
Lead Free
Lead Free
Length
1.5mm
Min Current Limit
300mA
Max Input Voltage
5.5V
Min Input Voltage
2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Power Dissipation
485mW
Max Supply Current
130uA
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
1%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
485mW
Power Supply Rejection Ratio (PSRR)
45dB
Quiescent Current
8uA
Radiation Hardening
No
RoHS Compliant
Yes
Thickness
750um
Width
1.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS72733DSER Datasheet
Download the complete datasheet for Texas Instruments TPS72733DSER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

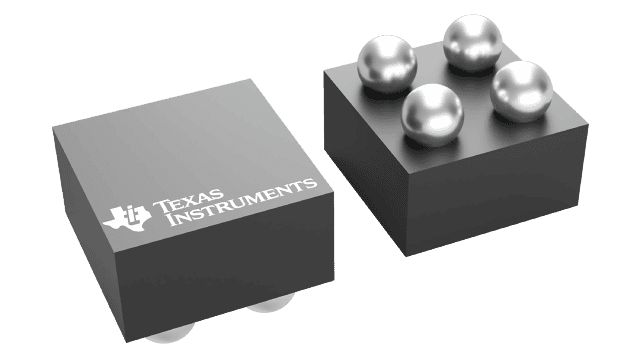

Product Images
