500mA fixed output, positive linear voltage regulator with 3.3V nominal output voltage and 1% output voltage accuracy. Features a low 280mV dropout voltage and 40µA quiescent current. Operates from a 2.7V to 6.5V input voltage range and supports a maximum output current of 500mA. Packaged in a compact 6-WSON with dimensions of 2.1mm x 2.1mm x 0.75mm, suitable for operation between -40°C and 125°C. RoHS compliant and lead-free.
PackageSON
Current65uA
PolarityPositive
Power1.54W
Quick Jump:
Technical Specifications
Texas Instruments TPS73533DRVT technical specifications.
General
| Accuracy | 2% |
| Package/Case | SON |
| Dropout Voltage | 280mV |
| Height | 0.75mm |
| Input Bias Current | 46uA |
| Lead Free | Lead Free |
| Length | 2.1mm |
| Min Current Limit | 800mA |
| Max Input Voltage | 6.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 3.3V |
| Max Power Dissipation | 1.54W |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Output Voltage Accuracy | 1% |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 1.54W |
| Quiescent Current | 40uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.208V |
| RoHS Compliant | Yes |
| Supply Current | 65uA |
| Thickness | 750um |
| Width | 2.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS73533DRVT Datasheet
Download the complete datasheet for Texas Instruments TPS73533DRVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

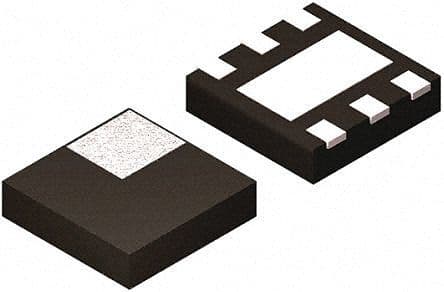

Product Images
