1-A positive adjustable linear voltage regulator, featuring ultra-low dropout voltage of 130mV and reverse current protection. This IC operates with a minimum input voltage of 2.2V and a maximum of 5.5V, providing an adjustable output voltage up to 5.5V. Key specifications include a 1.05A minimum current limit, 3% accuracy, and a quiescent current of 300uA. Packaged in a 6-SOT-223 case with dimensions of 6.5mm (L) x 3.5mm (W) x 1.6mm (H), it supports an operating temperature range of -40°C to 125°C.
PackageSOT-223-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS73701DCQRG4 technical specifications.
General
| Accuracy | 3% |
| Package/Case | SOT-223-6 |
| Dropout Voltage | 130mV |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Min Current Limit | 1.05A |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 1.2V |
| Max Power Dissipation | 2.22W |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 300uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.21V |
| RoHS Compliant | Yes |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS73701DCQRG4 Datasheet
Download the complete datasheet for Texas Instruments TPS73701DCQRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

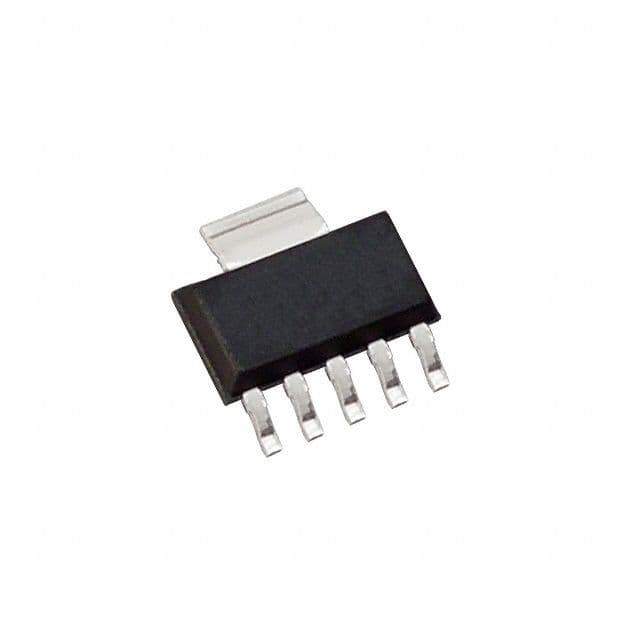

Product Images
