Dual-channel low-dropout voltage regulator offering 750mA output current per channel. Features fixed 1.8V and 3.3V outputs with a maximum input voltage of 10V and a minimum input voltage of 2.9V. Dropout voltage is 353mV, with a quiescent current of 340uA. Packaged in an HTSSOP with a wide operating temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageHTSSOP
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS73HD318PWPR technical specifications.
General
| Package/Case | HTSSOP |
| Current - Output 1 | 750mA |
| Current - Output 2 | 750mA |
| Dropout Voltage | 353mV |
| Input Bias Current | 340uA |
| Lead Free | Lead Free |
| Min Current Limit | 800mA |
| Max Input Voltage | 10V |
| Min Input Voltage | 2.9V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 700mA |
| Max Output Voltage | 1.8V |
| Min Output Voltage | 1.8V |
| Max Power Dissipation | 7.2W |
| Number of Outputs | 2 |
| Number of Regulators | 2 |
| Output Current | 750mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 340uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 1.8V |
| Voltage - Output 2 | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS73HD318PWPR Datasheet
Download the complete datasheet for Texas Instruments TPS73HD318PWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

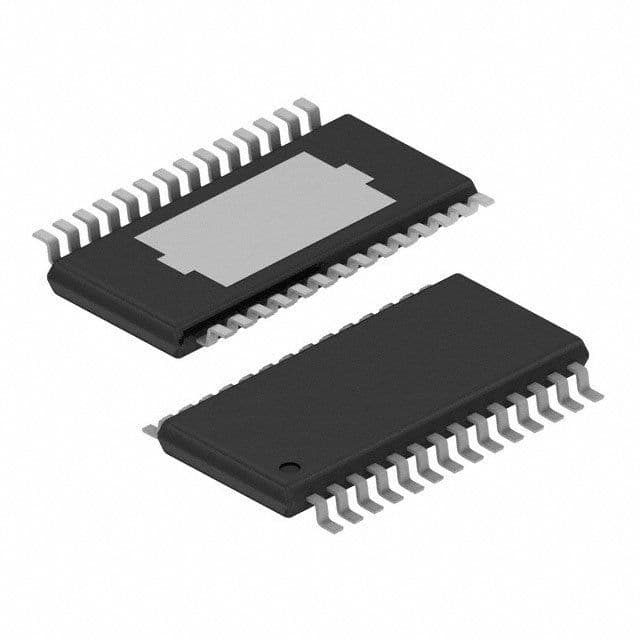

Product Images
