Dual-channel positive fixed output low-dropout voltage regulator offering 750mA output current per channel with a 3.3V output voltage. Features a low dropout voltage of 353mV and a maximum input voltage of 10V, operating from a minimum input voltage of 2.9V. This RoHS compliant component is housed in a 28-HTSSOP package, suitable for operation between -40°C and 125°C, with a quiescent current of 340uA and a minimum current limit of 800mA.
PackageHTSSOP
PolarityPositive
Power7.2W
Quick Jump:
Technical Specifications
Texas Instruments TPS73HD325PWPR technical specifications.
General
| Package/Case | HTSSOP |
| Dropout Voltage | 353mV |
| Input Bias Current | 340uA |
| Lead Free | Lead Free |
| Min Current Limit | 800mA |
| Max Input Voltage | 10V |
| Min Input Voltage | 2.9V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 700mA |
| Max Output Voltage | 2.5V |
| Min Output Voltage | 2.5V |
| Max Power Dissipation | 7.2W |
| Number of Outputs | 2 |
| Number of Regulators | 2 |
| Output Current | 750mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 7.2W |
| Quiescent Current | 340uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS73HD325PWPR Datasheet
Download the complete datasheet for Texas Instruments TPS73HD325PWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

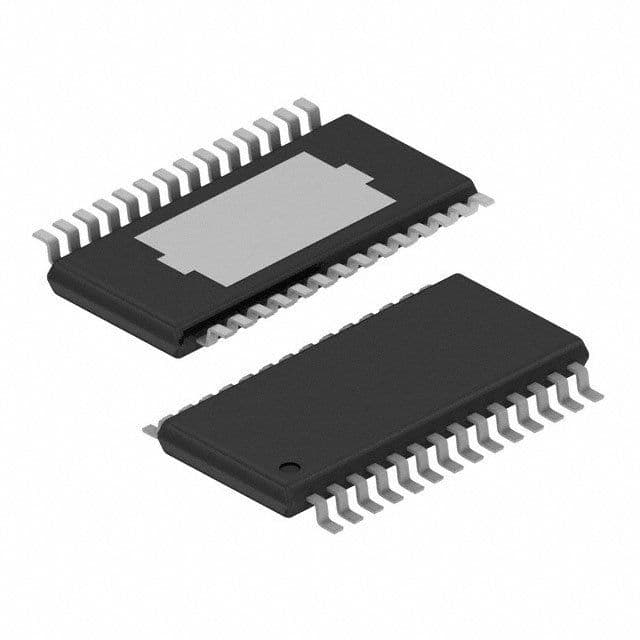

Product Images
