Single-output, 1.5-A adjustable linear voltage regulator (LDO) with a 0.8V to 3.3V output range. Features 1% output voltage accuracy, 60mV dropout voltage, and a maximum input voltage of 5.5V. Supports programmable soft-start and operates across a wide temperature range of -40°C to 125°C. Packaged in a TO-263 surface-mount case, this RoHS compliant component offers a maximum output current of 1.5A.
PackageTO-263
MountingSurface Mount
PolarityPositive
Power4.98W
Quick Jump:
Technical Specifications
Texas Instruments TPS74201KTWT technical specifications.
General
Accuracy
1%
Package/Case
TO-263
Dropout Voltage
60mV
Height
4.44mm
Lead Free
Lead Free
Length
10.1mm
Min Current Limit
1.8A
Max Input Voltage
5.5V
Min Input Voltage
800mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
3.6V
Min Output Voltage
800mV
Max Power Dissipation
5.32W
Max Supply Current
1.5mA
Max Supply Voltage
5.5V
Min Supply Voltage
800mV
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Adjustable
Output Voltage
3.6V
Output Voltage Accuracy
1%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
4.98W
Power Supply Rejection Ratio (PSRR)
42dB
Quiescent Current
115uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
804mV
RoHS Compliant
Yes
Termination
SMD/SMT
Width
8.89mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS74201KTWT Datasheet
Download the complete datasheet for Texas Instruments TPS74201KTWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

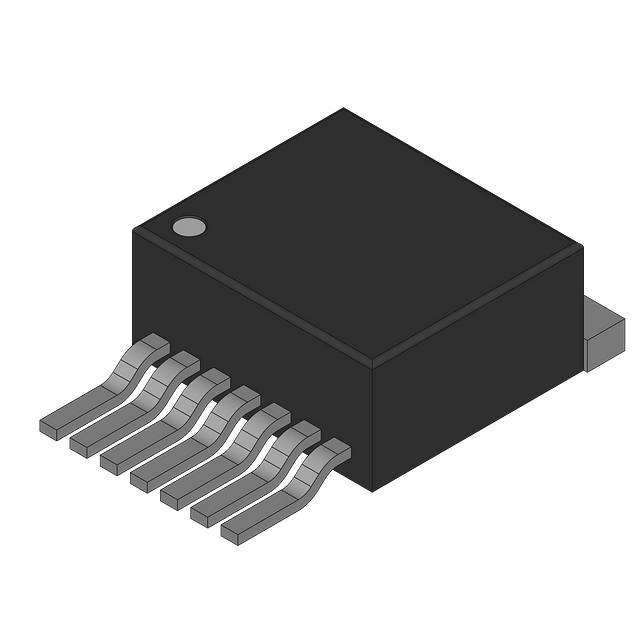

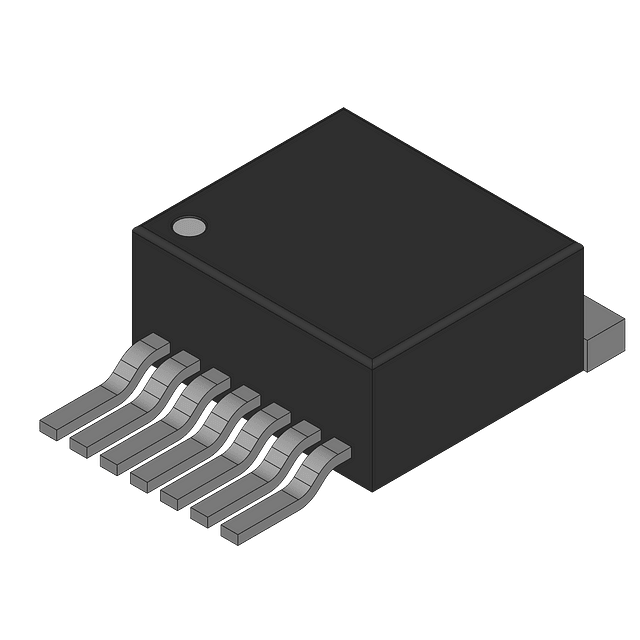

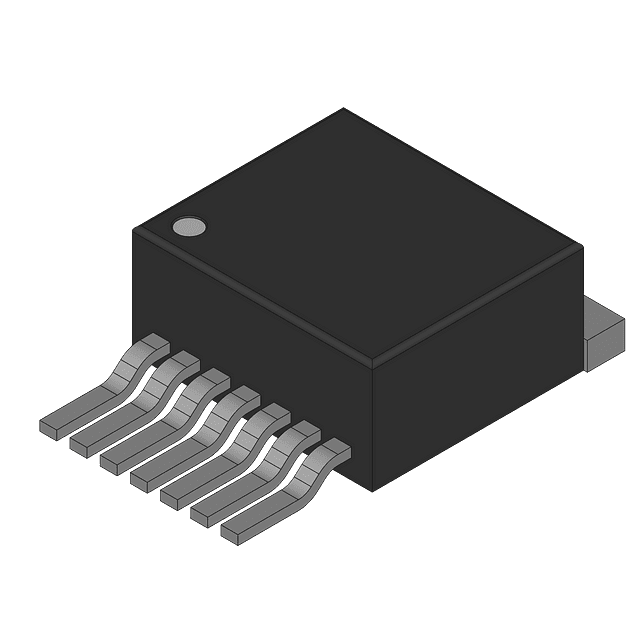

Product Images
