High-accuracy, adjustable linear voltage regulator delivering 1.5A output current with a low dropout voltage of 55mV. Features a wide input voltage range from 800mV to 5.5V and an output voltage adjustable up to 3.6V. Operates across a temperature range of -40°C to 85°C with 1% accuracy. Packaged in a 20-VQFN for efficient thermal management.
PackageVQFN
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS74301RGWR technical specifications.
General
Accuracy
1%
Package/Case
VQFN
Dropout Voltage
55mV
Input Bias Current
2mA
Lead Free
Lead Free
Min Current Limit
1.8A
Max Input Voltage
5.5V
Min Input Voltage
800mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
3.6V
Min Output Voltage
800mV
Max Power Dissipation
2.74W
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Adjustable
Output Voltage
3.6V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
3mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
804mV
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS74301RGWR Datasheet
Download the complete datasheet for Texas Instruments TPS74301RGWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

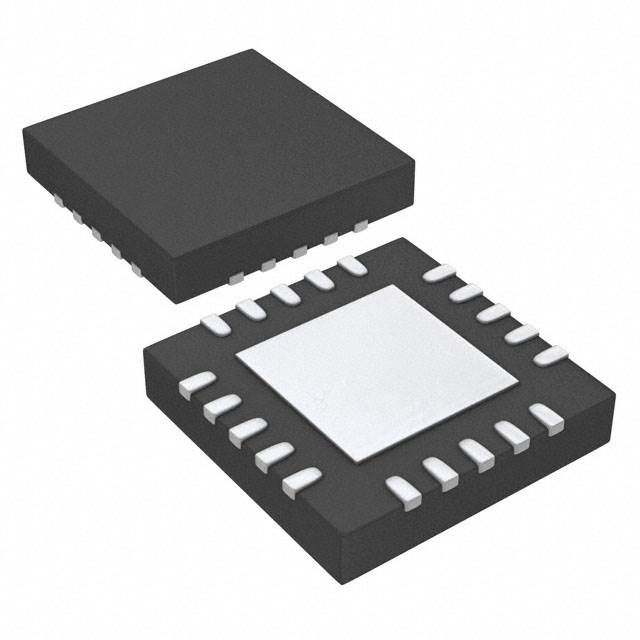

Product Images
