3-A adjustable ultra-low-dropout linear voltage regulator featuring 1% output voltage accuracy and a low 115mV dropout voltage. This positive polarity regulator operates from a minimum input voltage of 800mV up to 5.5V, providing an adjustable output voltage range from 800mV to 3.6V. Designed for high performance, it offers low noise and high power supply rejection ratio (PSRR). The component is housed in a compact 5mm x 5mm x 1mm VQFN package, suitable for operation across a wide temperature range of -40°C to 125°C.
PackageVQFN
PolarityPositive
Power2.74W
Quick Jump:
Technical Specifications
Texas Instruments TPS74401RGWR technical specifications.
General
Accuracy
1%
Package/Case
VQFN
Dropout Voltage
115mV
Height
1mm
Input Bias Current
2mA
Lead Free
Lead Free
Length
5mm
Min Current Limit
3.8A
Max Input Voltage
5.5V
Min Input Voltage
800mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
3.6V
Min Output Voltage
800mV
Max Power Dissipation
2.74W
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
3A
Output Type
Adjustable
Output Voltage
3.6V
Output Voltage Accuracy
1%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
2.74W
Quiescent Current
3mA
Reach SVHC Compliant
No
Reference Voltage
804mV
RoHS Compliant
Yes
Thickness
900um
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS74401RGWR Datasheet
Download the complete datasheet for Texas Instruments TPS74401RGWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

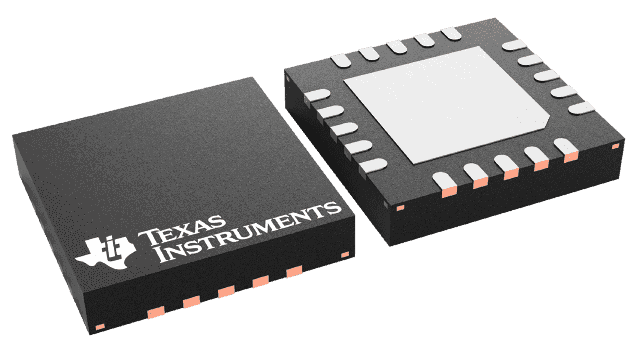

Product Images
