1.5A adjustable ultra-low-dropout linear voltage regulator with 60mV dropout voltage. Features 2% accuracy, 1.5A max output current, and an adjustable output voltage range from 800mV to 3.6V. Operates with an input voltage from 800mV to 5.5V. Includes power good and enable functions. Packaged in a 3mm x 3mm x 0.9mm SON package, suitable for surface mount applications.
PackageSON
PolarityPositive
Power1.92W
Quick Jump:
Technical Specifications
Texas Instruments TPS74801DRCT technical specifications.
General
Accuracy
2%
Package/Case
SON
Dropout Voltage
60mV
Height
0.9mm
Input Bias Current
1mA
Lead Free
Lead Free
Length
3mm
Min Current Limit
2A
Max Input Voltage
5.5V
Min Input Voltage
800mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
3.6V
Min Output Voltage
800mV
Max Power Dissipation
1.92W
Max Supply Voltage
5.5V
Min Supply Voltage
800mV
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Adjustable
Output Voltage
3.6V
Output Voltage Accuracy
0.5%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
1.92W
Quiescent Current
1mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
804mV
RoHS Compliant
Yes
Termination
SMD/SMT
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS74801DRCT Datasheet
Download the complete datasheet for Texas Instruments TPS74801DRCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

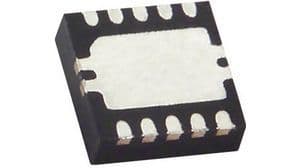

Product Images
