1.5A adjustable positive linear voltage regulator with ultra-low dropout voltage of 60mV. Features a minimum input voltage of 800mV and a maximum input voltage of 5.5V, with an output voltage range from 800mV to 3.6V. Includes power good and enable functions, a 2% accuracy, and a quiescent current of 1mA. Packaged in a 20-VQFN, this RoHS compliant component operates from -40°C to 125°C.
PackageVQFN
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS74801RGWRG4 technical specifications.
General
Accuracy
2%
Package/Case
VQFN
Dropout Voltage
60mV
Input Bias Current
1mA
Lead Free
Lead Free
Min Current Limit
2A
Max Input Voltage
5.5V
Min Input Voltage
800mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
3.6V
Min Output Voltage
800mV
Max Power Dissipation
2.74W
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Adjustable
Output Voltage
3.6V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
1mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
804mV
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS74801RGWRG4 Datasheet
Download the complete datasheet for Texas Instruments TPS74801RGWRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

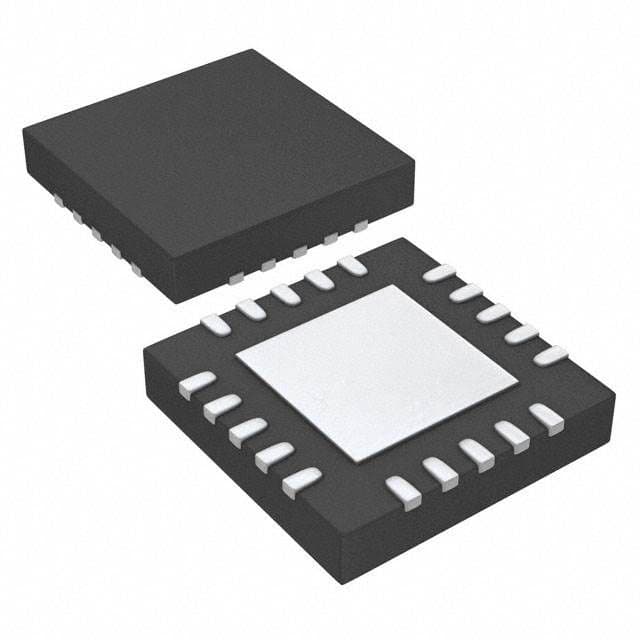

Product Images
