1.5A adjustable ultra-low-dropout linear voltage regulator, featuring a minimum input voltage of 800mV and a maximum output voltage of 3.6V. This positive output regulator offers a low dropout voltage of 60mV and a maximum output current of 1.5A. It operates within a temperature range of -40°C to 125°C and includes power good and enable functions. The component is housed in a VQFN package and is RoHS compliant.
PackageVQFN
PolarityPositive
Power2.74W
Quick Jump:
Technical Specifications
Texas Instruments TPS74801RGWT technical specifications.
General
| Accuracy | 2% |
| Package/Case | VQFN |
| Dropout Voltage | 60mV |
| Input Bias Current | 1mA |
| Lead Free | Lead Free |
| Min Current Limit | 2A |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 800mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 3.6V |
| Min Output Voltage | 800mV |
| Max Power Dissipation | 2.74W |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 3.6V |
| Output Voltage Accuracy | 0.5% |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 2.74W |
| Power Supply Rejection Ratio (PSRR) | 30dB |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 804mV |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS74801RGWT Datasheet
Download the complete datasheet for Texas Instruments TPS74801RGWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

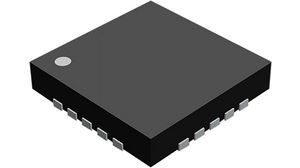

Product Images
