Texas Instruments
TPS75103YFFT
low-dropout, two-bank LED driver with PWM brightness control 9-DSBGA -40 to 85
PackageBGA
Power704mW
Quick Jump:
Technical Specifications
Texas Instruments TPS75103YFFT technical specifications.
General
| Package/Case | BGA |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Power Dissipation | 704mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| Number of Segments | 4 |
| Output Current | 25mA |
| Output Voltage | 3.6V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Dissipation | 704mW |
| Quiescent Current | 180uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS75103YFFT Datasheet
Download the complete datasheet for Texas Instruments TPS75103YFFT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

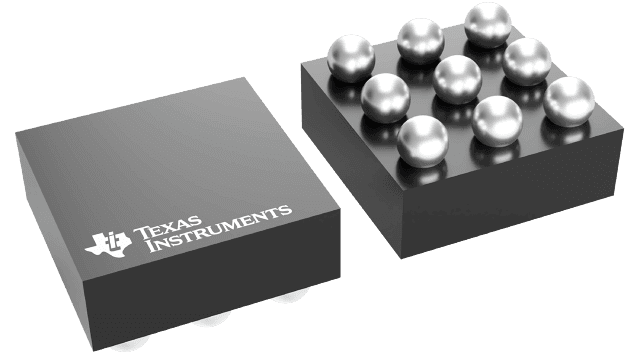

Product Images
