Single output, positive polarity, adjustable linear voltage regulator (LDO) with a maximum output current of 5A. Features a low quiescent current of 120µA and a dropout voltage of 250mV. Operates with an input voltage range from 2.8V to 5.5V, providing an adjustable output voltage from 1.22V to 5.0V. Packaged in a TO-220-5 case, this component offers fast transient response and a minimum current limit of 5.5A, with an operating temperature range of -40°C to 125°C.
PackageTO-220-5
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS75501KCG3 technical specifications.
General
| Package/Case | TO-220-5 |
| Dropout Voltage | 250mV |
| Input Bias Current | 125uA |
| Lead Free | Contains Lead |
| Min Current Limit | 5.5A |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Output Voltage | 5V |
| Min Output Voltage | 1.22V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 5A |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 120uA |
| Radiation Hardening | No |
| Reference Voltage | 1.224V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS75501KCG3 Datasheet
Download the complete datasheet for Texas Instruments TPS75501KCG3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

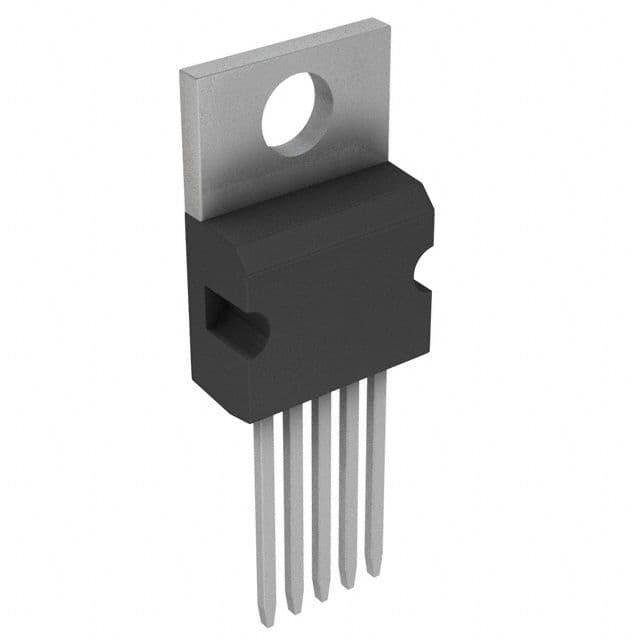

Product Images
