3-A, ultra-low-dropout linear voltage regulator, adjustable output from 1.22V to 5V. Features 150mV dropout voltage at 3A, 5.5V maximum input voltage, and 2.8V minimum input voltage. Includes power good and enable functions, with a quiescent current of 120uA. Packaged in a 6-pin TO-263-6, operating from -40°C to 125°C. Lead-free and RoHS compliant.
PackageTO-263-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS75701KTTR technical specifications.
General
| Package/Case | TO-263-6 |
| Dropout Voltage | 150mV |
| Input Bias Current | 125uA |
| Lead Free | Lead Free |
| Min Current Limit | 5.5A |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 5V |
| Min Output Voltage | 1.22V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 5V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 120uA |
| Radiation Hardening | No |
| Reference Voltage | 1.224V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS75701KTTR Datasheet
Download the complete datasheet for Texas Instruments TPS75701KTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

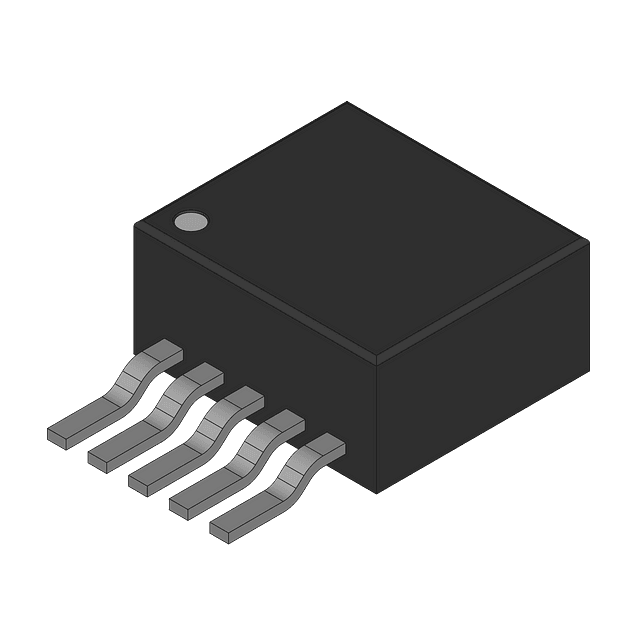

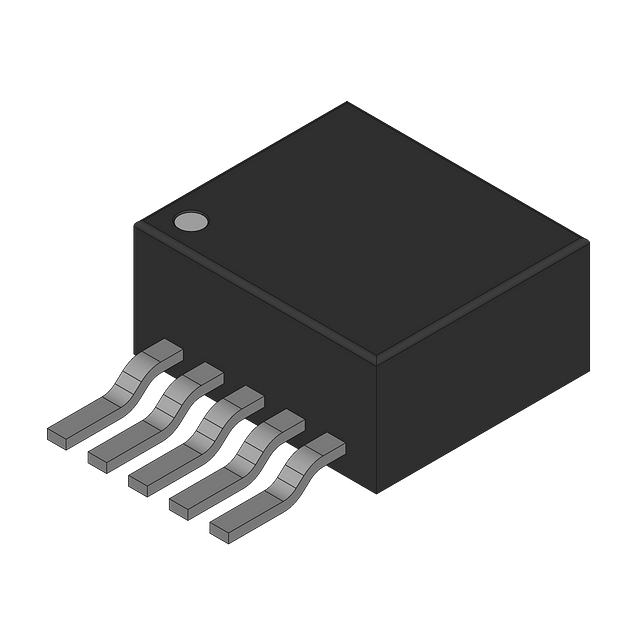

Product Images
