3-A, ultra-low-dropout linear voltage regulator, fixed 2.5V output, 1-channel, positive polarity. Features power good and enable functions, with a maximum input voltage of 5.5V and a minimum of 2.8V. Offers 3% accuracy, 3A maximum output current, and operates across a -40°C to 125°C temperature range. Packaged in a TO-263-6 (DDPAK/TO-263) surface-mount case, supplied on tape and reel.
PackageTO-263-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS75725KTTR technical specifications.
General
| Accuracy | 3% |
| Package/Case | TO-263-6 |
| Height | 4.58mm |
| Input Bias Current | 125uA |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Min Current Limit | 5.5A |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 2.5V |
| Min Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 3A |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 120uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 8.42mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS75725KTTR Datasheet
Download the complete datasheet for Texas Instruments TPS75725KTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

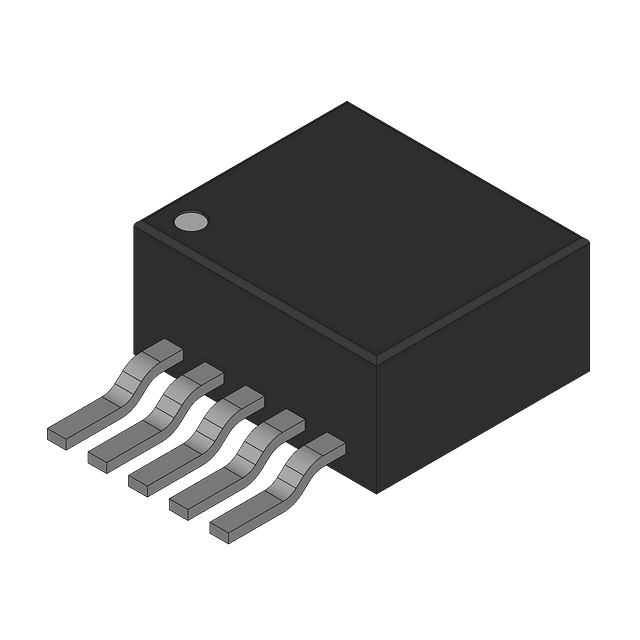

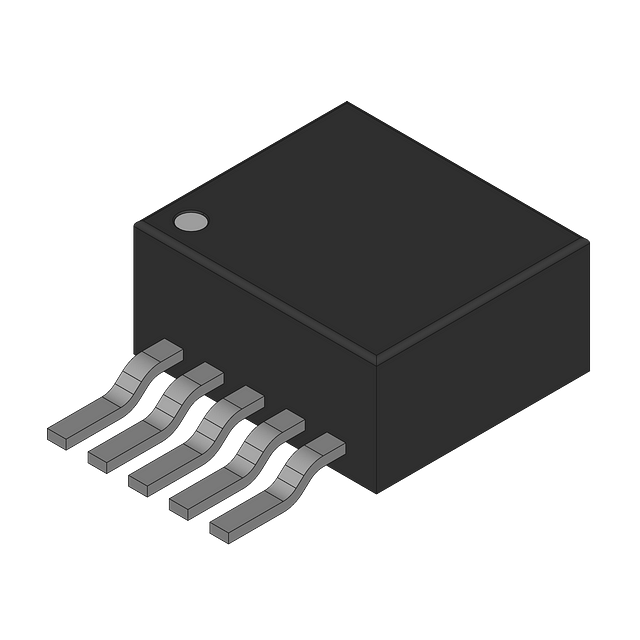

Product Images
