7.5A positive fixed output linear voltage regulator with 2.5V output voltage and 3% accuracy. Features fast-transient response, 400mV dropout voltage, and a minimum current limit of 8A. Operates from a 2.8V to 5.5V input voltage range and supports a maximum operating temperature of 125°C. Packaged in a TO-220-5 case, this RoHS compliant component is suitable for demanding power management applications.
PackageTO-220-5
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS75925KCG3 technical specifications.
General
| Accuracy | 3% |
| Package/Case | TO-220-5 |
| Dropout Voltage | 400mV |
| Input Bias Current | 125uA |
| Lead Free | Lead Free |
| Min Current Limit | 8A |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 7.5A |
| Max Output Voltage | 2.5V |
| Min Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 7.5A |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Output Voltage Accuracy | 3% |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 120uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS75925KCG3 Datasheet
Download the complete datasheet for Texas Instruments TPS75925KCG3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

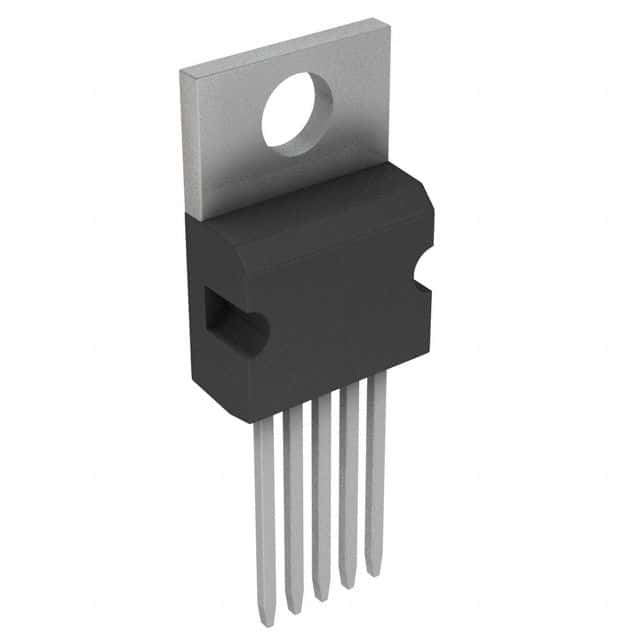

Product Images
