Ultra-low-dropout (LDO) voltage regulator, 7.5A output current, fixed 3.3V output voltage. Features 400mV dropout voltage, 3% accuracy, and a 5.5V maximum input voltage. Operates from -40°C to 125°C with a 120µA quiescent current. Packaged in a 6-pin TO-263, supplied on tape and reel. Includes power good and enable functions.
PackageTO-263-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS75933KTTR technical specifications.
General
| Accuracy | 3% |
| Package/Case | TO-263-6 |
| Dropout Voltage | 400mV |
| Height | 4.83mm |
| Input Bias Current | 125uA |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Min Current Limit | 8A |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 7.5A |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 7.5A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 120uA |
| RoHS Compliant | Yes |
| Thickness | 4.58mm |
| Width | 8.42mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS75933KTTR Datasheet
Download the complete datasheet for Texas Instruments TPS75933KTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

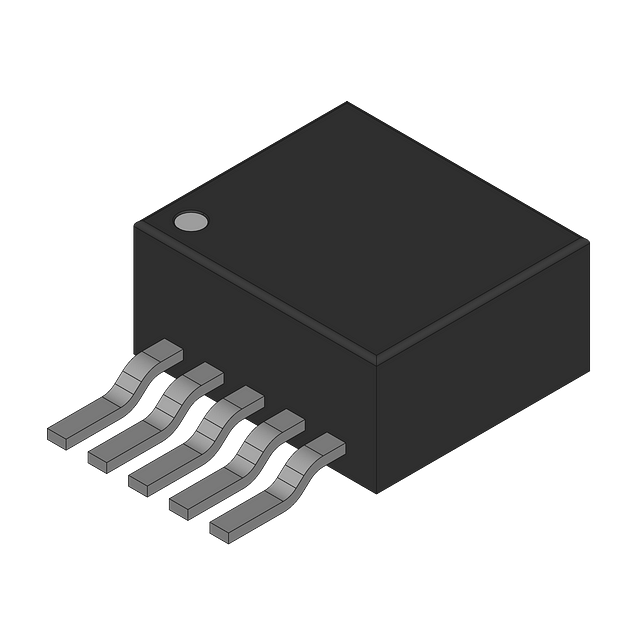

Product Images
