Low-dropout voltage regulator (LDO) with a 3V fixed output voltage and 150mA output current. Features a 375mV dropout voltage, 3% output voltage accuracy, and a maximum input voltage of 10V. Operates within a temperature range of -40°C to 125°C and is housed in a compact SOT-23 package. This RoHS compliant component offers a 60dB PSRR and is supplied on tape and reel.
PackageSOT-23
Voltage3V
Current Rating150mA
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS76330DBVT technical specifications.
General
| Accuracy | 3% |
| Package/Case | SOT-23 |
| Current Rating | 150mA |
| Dropout Voltage | 375mV |
| Height | 1.15mm |
| Input Bias Current | 85uA |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Input Voltage | 10V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Max Output Voltage | 3V |
| Min Output Voltage | 3V |
| Max Power Dissipation | 555mW |
| Max Supply Current | 140uA |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 2.7V |
| Nominal Output Voltage | 3V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 3V |
| Output Voltage Accuracy | 3% |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 555mW |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 80uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 1.2mm |
| Voltage | 3V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS76330DBVT Datasheet
Download the complete datasheet for Texas Instruments TPS76330DBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

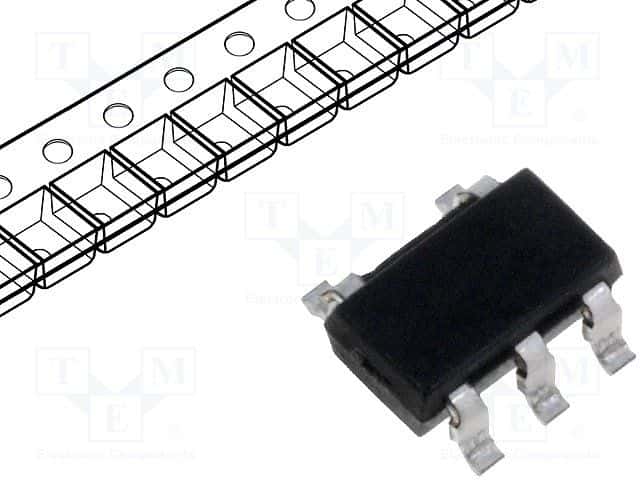

Product Images
