Dual-channel, fixed positive LDO voltage regulator offering 1A output current per channel. Features 3.3V and 1.8V fixed output voltages with 2% accuracy. Operates with a maximum input voltage of 10V and a minimum of 2.7V, exhibiting a 350mV dropout voltage. Includes power good and enable functions, housed in a 28-pin HTSSOP package. Suitable for surface mount applications with a wide operating temperature range of -40°C to 125°C.
PackageHTSSOP
PolarityPositive
Power5.07W
Quick Jump:
Technical Specifications
Texas Instruments TPS767D318PWP technical specifications.
General
Accuracy
2%
Package/Case
HTSSOP
Current - Output 1
1A
Current - Output 2
1A
Dropout Voltage
350mV
Height
1.15mm
Input Bias Current
85uA
JESD-30 Code
R-PDSO-G28
Lead Free
Lead Free
Length
9.7mm
Max Input Voltage
10V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Power Dissipation
5.07W
Moisture Sensitivity Level
2
Number of Channels
2
Number of Functions
2
Number of Outputs
2
Number of Regulators
2
Output Current
1A
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
2%
Package Body Material
Plastic
Package Quantity
50
Package Shape
Rectangular
Packaging
Rail/Tube
Peak Reflow Temperature (Cel)
260°C
Polarity
Positive
Power Dissipation
5.07W
Quiescent Current
80uA
Radiation Hardening
No
Reach SVHC Compliant
No
Regulator Type
FIXED POSITIVE LDO REGULATOR
RoHS Compliant
Yes
Surface Mount
Yes
Technology
PMOS
Terminal Finish
Gold
Terminal Form
Gull Wing
Terminal Position
DUAL
Thickness
1mm
Voltage - Output 1
1.8V
Voltage - Output 2
3.3V
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS767D318PWP Datasheet
Download the complete datasheet for Texas Instruments TPS767D318PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

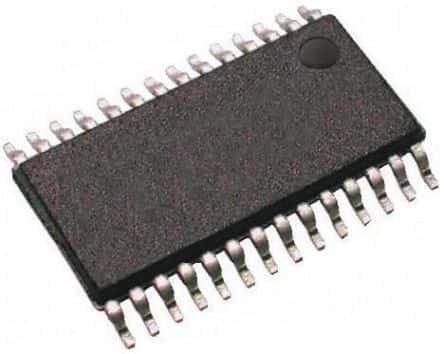

Product Images
