Automotive 500-mA, low-dropout voltage regulator, featuring an adjustable output voltage up to 5.5V and a minimum input voltage of 2.7V. This integrated circuit offers a maximum input voltage of 10V and a dropout voltage of 169mV at 500mA. Key specifications include 2% accuracy, 80µA quiescent current, and a power good output. The component operates across a wide temperature range of -40°C to 125°C and is housed in a lead-free, 20-pin HTSSOP package.
PackageHTSSOP
Quick Jump:
Technical Specifications
Texas Instruments TPS77601QPWPRG4Q1 technical specifications.
General
| Accuracy | 2% |
| Package/Case | HTSSOP |
| Dropout Voltage | 169mV |
| Height | 1.05mm |
| Input Bias Current | 85uA |
| Lead Free | Lead Free |
| Length | 6.6mm |
| Max Input Voltage | 10V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 1.2V |
| Max Power Dissipation | 7.2W |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 80uA |
| Reference Voltage | 1.1834V |
| RoHS Compliant | Yes |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS77601QPWPRG4Q1 Datasheet
Download the complete datasheet for Texas Instruments TPS77601QPWPRG4Q1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

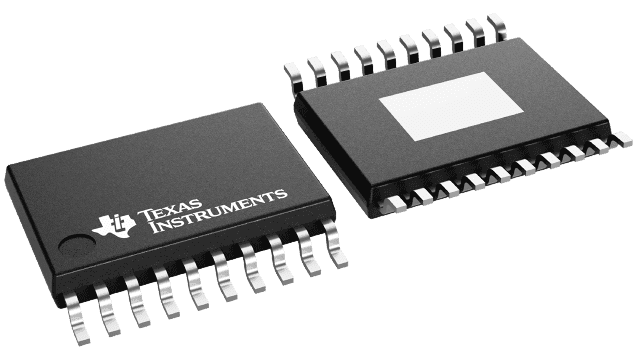

Product Images
