Positive, adjustable output linear voltage regulator (LDO) delivering up to 1.5A output current. Features a low dropout voltage of 310mV and operates from a 2.7V to 5.5V input voltage range. Offers a 1.225V reference voltage with 3% output voltage accuracy. Packaged in a 6-SOT-223 SMD/SMT format, this component operates from -40°C to 125°C and is RoHS compliant.
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS78601DCQR technical specifications.
General
| Accuracy | 3% |
| Package/Case | SOT-223 |
| Dropout Voltage | 310mV |
| Input Bias Current | 310uA |
| Lead Free | Lead Free |
| Min Current Limit | 2.4A |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 1.22V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Output Voltage Accuracy | 3% |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 200uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.225V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS78601DCQR Datasheet
Download the complete datasheet for Texas Instruments TPS78601DCQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

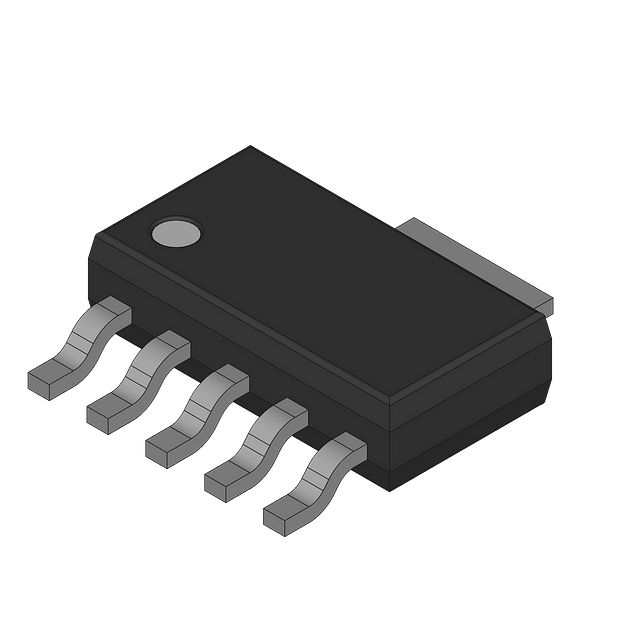

Product Images
