3V fixed output, positive polarity, low-dropout linear voltage regulator with 250mA maximum output current. Features a low dropout voltage of 155mV and a wide input voltage range from 2.7V to 5.5V. Operates across a temperature range of -40°C to 85°C with 3% accuracy. Packaged in an 8-pin HTSSOP on tape and reel, this RoHS compliant component offers an enable function and is lead-free.
PackageHTSSOP
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPS79430DGNR technical specifications.
General
| Accuracy | 3% |
| Package/Case | HTSSOP |
| Dropout Voltage | 155mV |
| Input Bias Current | 170uA |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Voltage | 3V |
| Min Output Voltage | 3V |
| Max Power Dissipation | 2.6W |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 260uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS79430DGNR Datasheet
Download the complete datasheet for Texas Instruments TPS79430DGNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

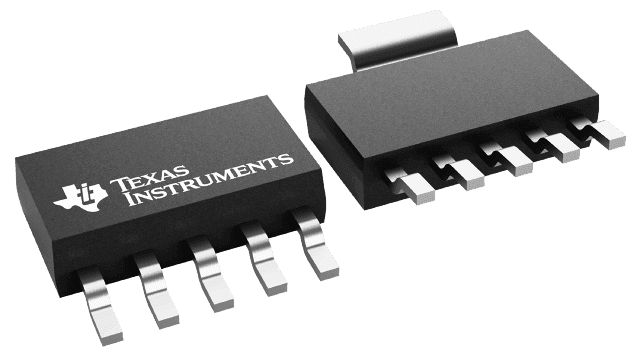

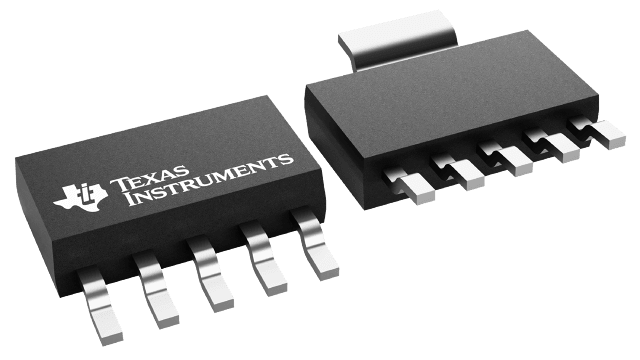

Product Images
